Reality Solar Roof Tiles 30W Photovoltaic energy on your rooftop
Couldn't load pickup availability
Popular Single Glass Roof Solar Tile 30W Photovoltaic Roof Tiles

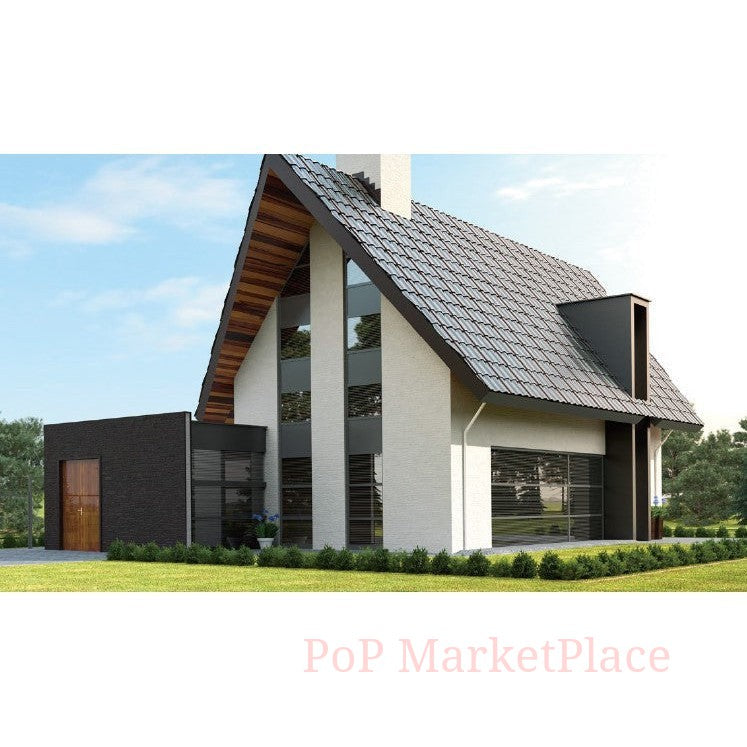

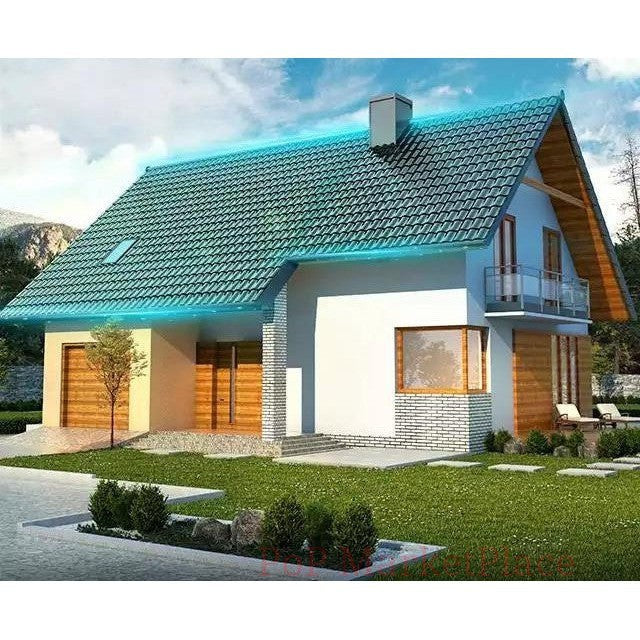

Transform your housing and your rooftop, and produce your own clean energy
Do solar roof tiles generate as much energy as conventional solar panels?
The Global Reality solar roof tile not only respects the design of the structure it is placed upon, it generates more energy than conventional PV panels. Since the integrated PV surface is curved by nature, sunlight will always reach the roof tiles at an optimal angle. Using next-generation power optimisation and monitoring technologies, energy yields are substantially higher than that of conventional PV panels. By integrating this advanced PV system, the roof tile truly merges the best of modern technology with the classic. The unique advantages of the solar roof tile are:
 |
Higher energy yield than conventional systems |
 |
No negative shadowing effects |
 |
Smart monitoring of individual tiles |
 |

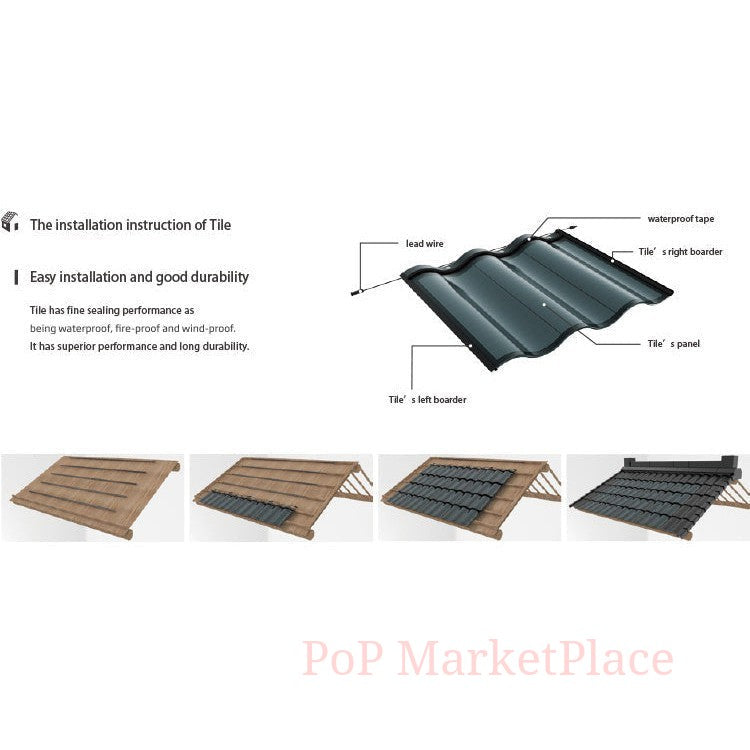

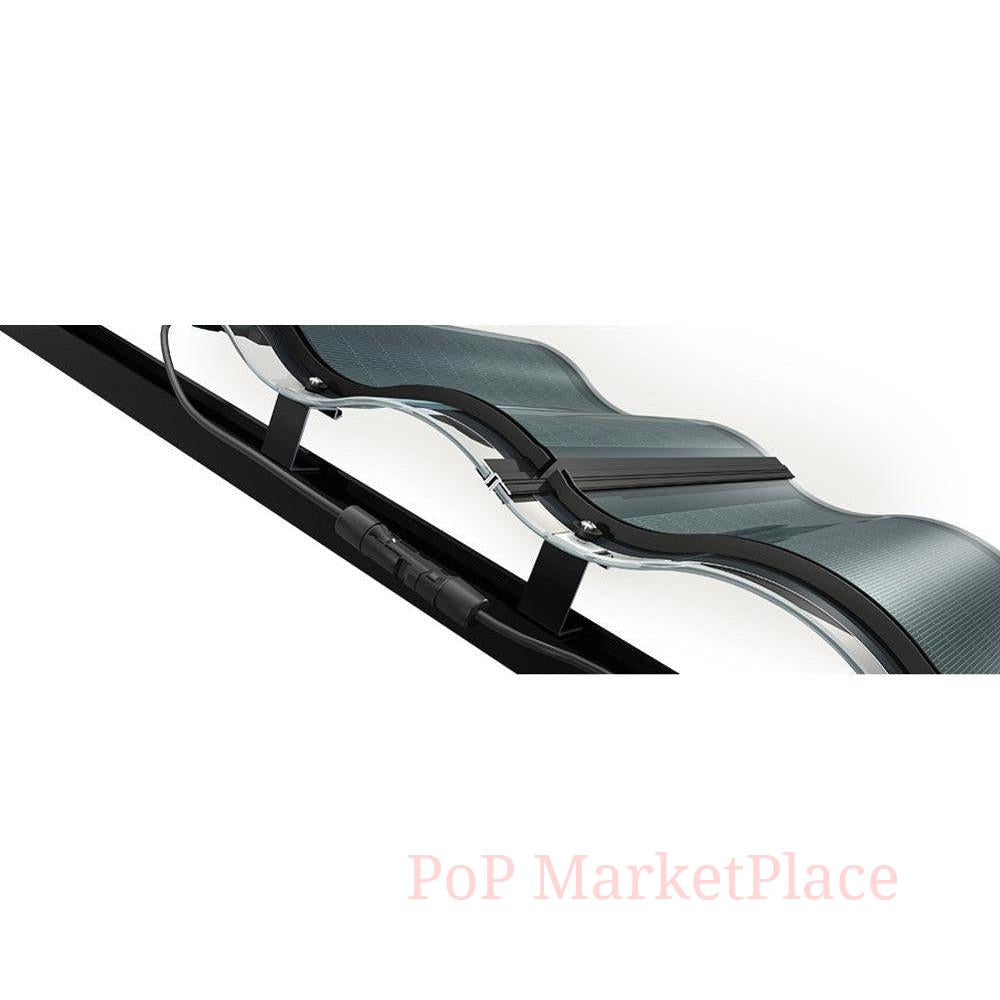

Flexible and obstacle-free installation |
 |
Seamless integration in traditional roof |
 |
Lower environmental impact than conventional PV systems |
Solar Tile

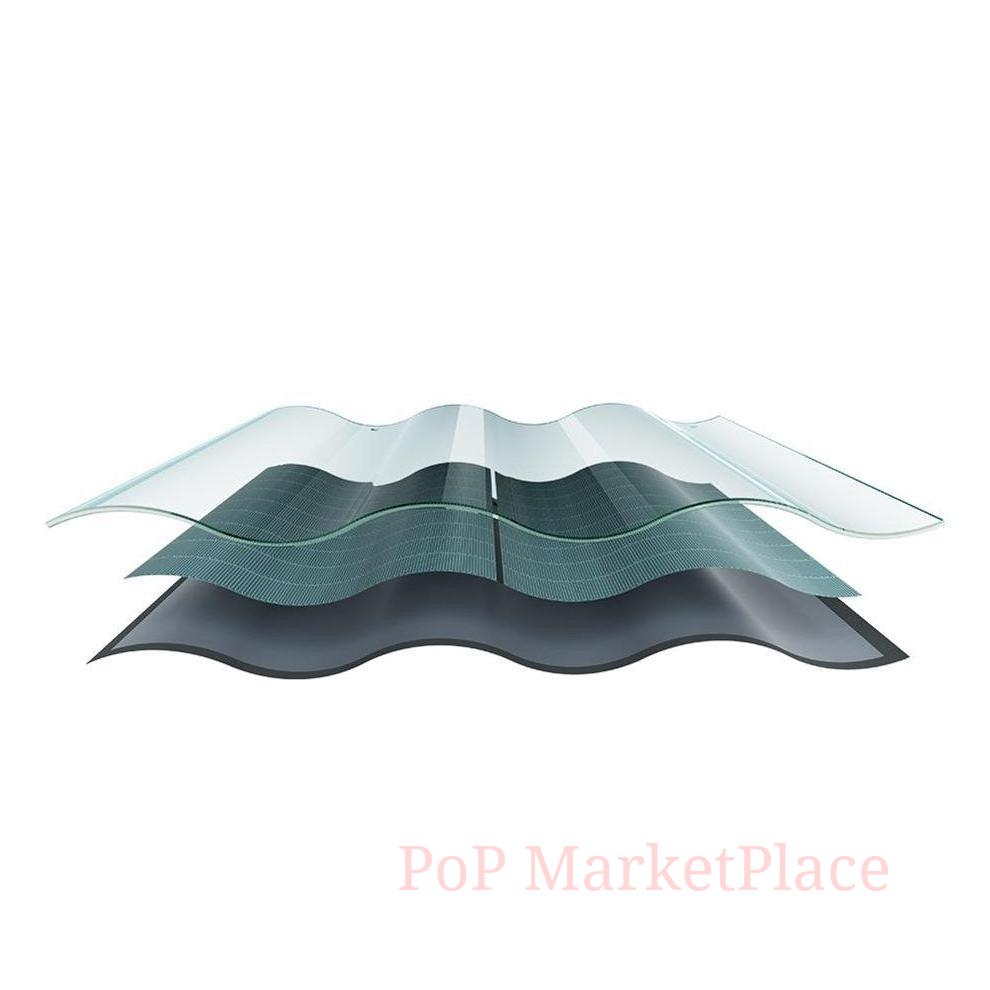

Environmentally friendly building materials. The combination of traditional building materials and thin-film solar technology can not only replace traditional tiles as building materials, but also replace traditional photovoltaic panels.

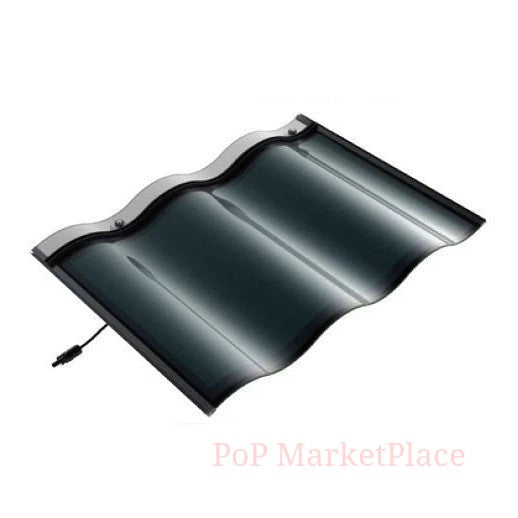

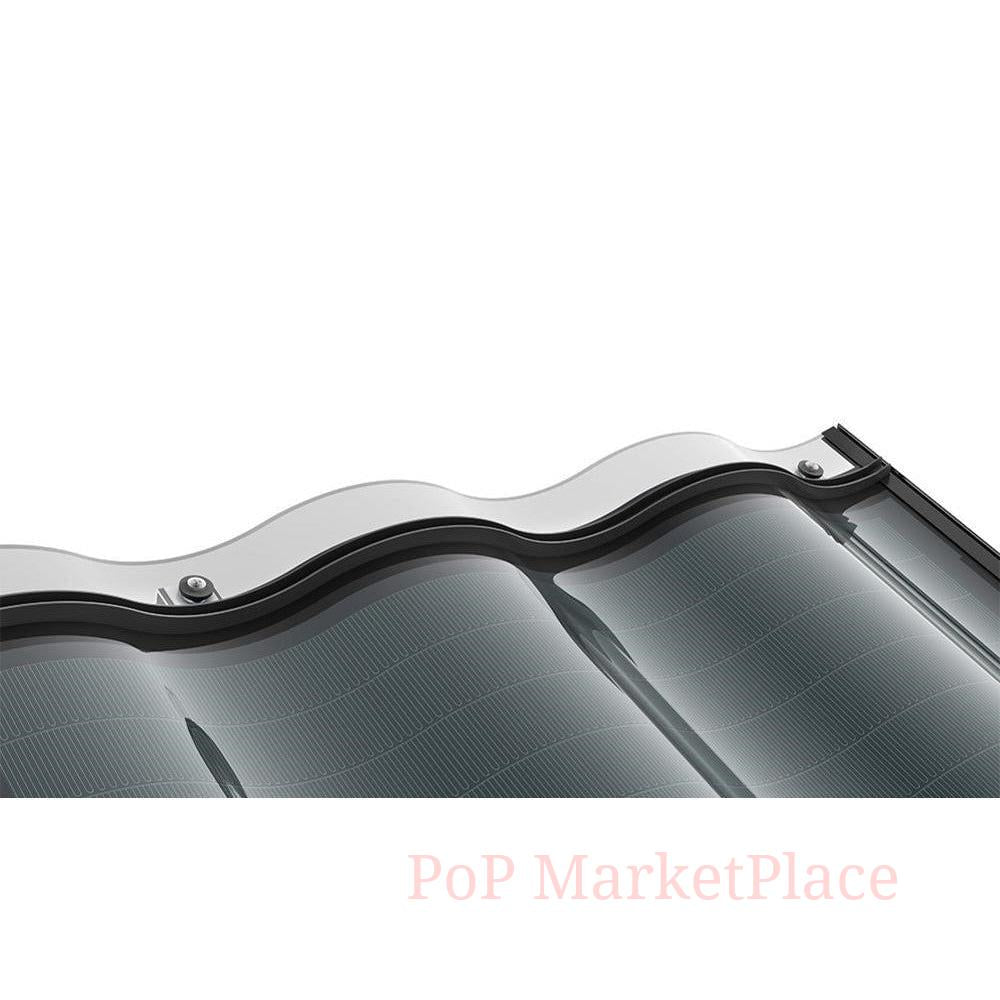

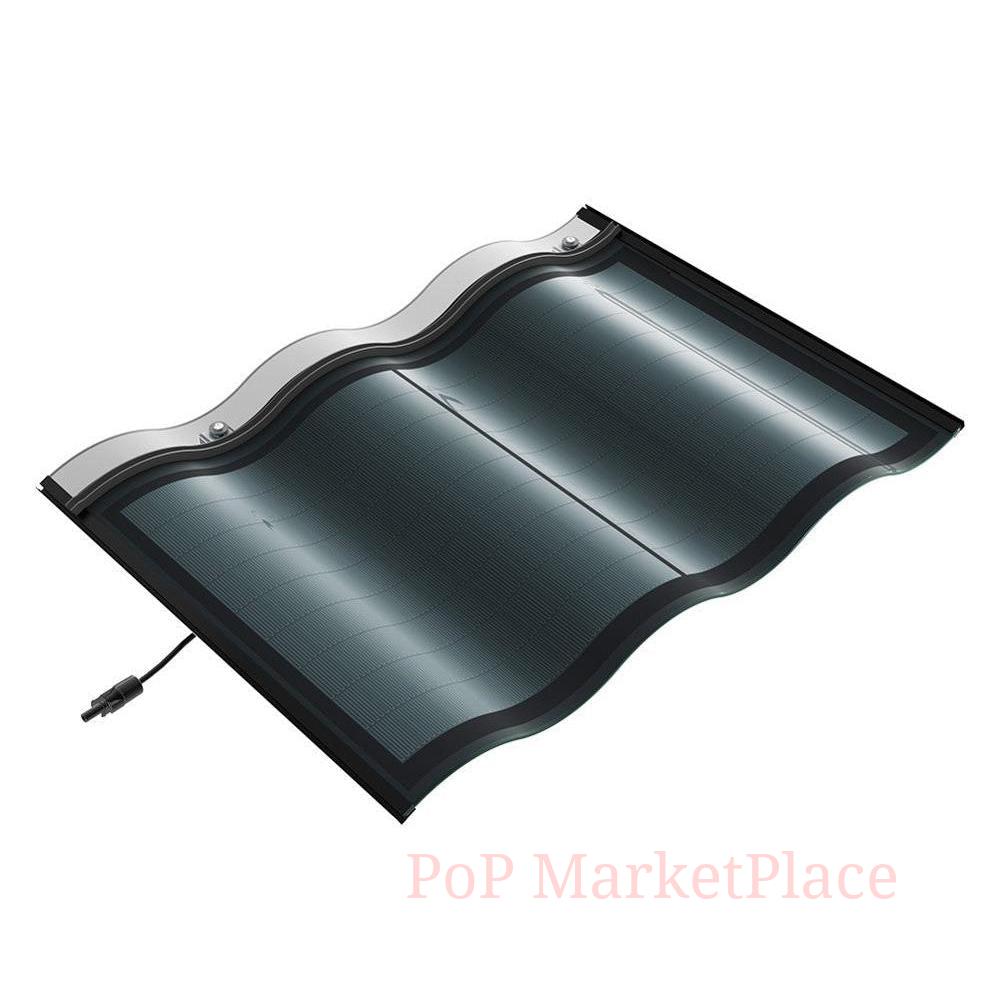

30W Single Glass Solar Tile
It not only has the functions of waterproofing and heat insulation, solar roof tiles photovoltaic but also changes the dependence of buildings on external energy sources, making zero-energy buildings possible.

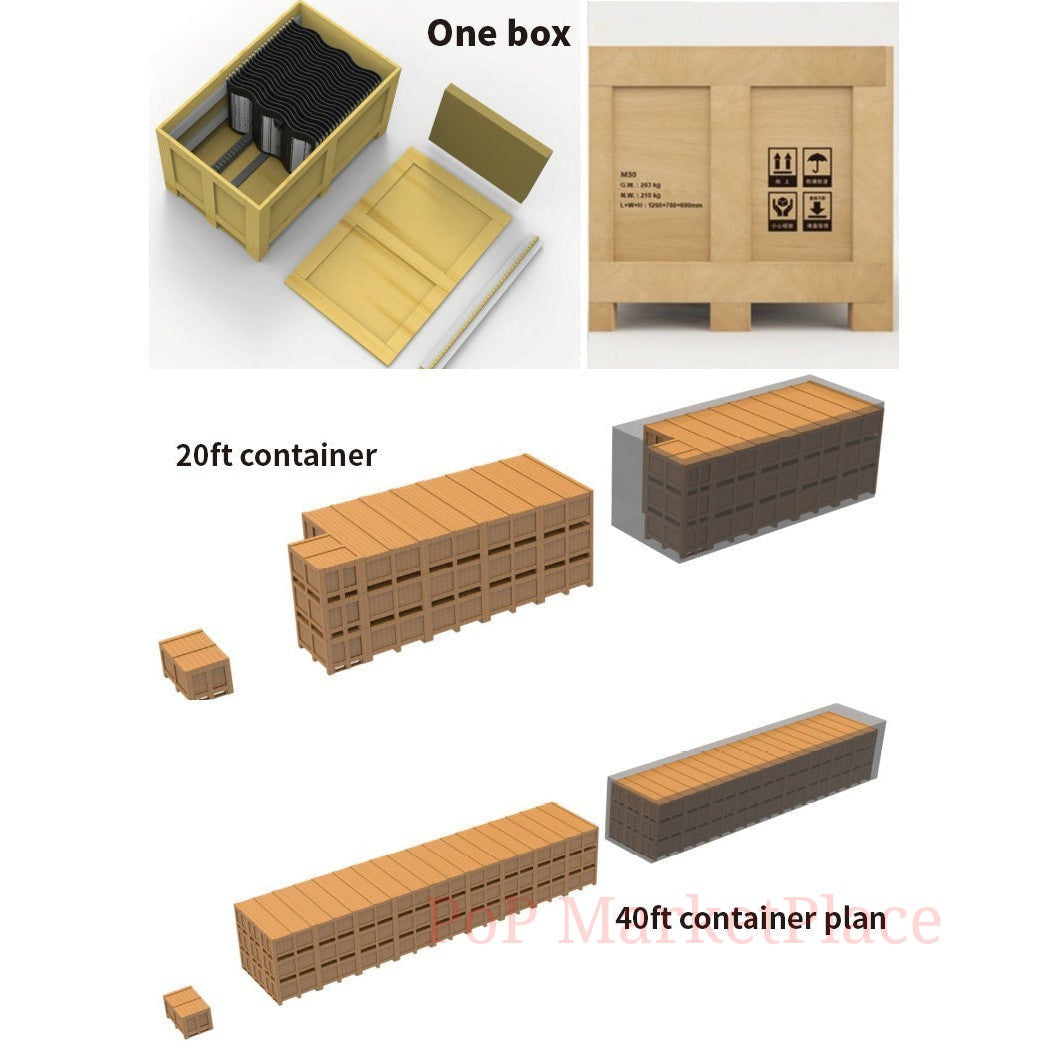

Packaging:
|
One Box
|
Packing Specification
|
Gross Weight
|
Net Weight
|
Number per carton
|
|
1260X780X690mm
|
263kg
|
210kg
|
40pcs
|
|
Container Plan
|
Loading Quantity
|
Loading Quantity
|
Total weight
|
Volume
|
|
20ft
|
39ctn
|
1560pcs
|
10.3t
|
27.6m³
|
|
40ft
|
81ctn
|
3240pcs
|
21.5t
|
54m³
|
|
Physical parameters |
|
|
product model: |
BSM-30S |
|
length: |
700mm |
|
width: |
500mm |
|
arch height: |
35mm |
|
weight: |
5.2KG |
|
color: |
black |
|
junction box: |
68*68*19.7 (mm) IP67 |
|
cable type: |
2.5mm solar cable 450 (+10/-0) mm |
|
cable connector: |
MC4 |
|
Electrical parameters |
|
|
chip type: |
CIGS |
|
power: |
30W |
|
short-circuit current: |
4.45A |
|
open-circuit voltage: |
10.16V |
|
current at PMPP: |
3.87A |
|
voltage at PMPP: |
7.79V |
|
Function grade |
|
|
loading grade: |
2400Pa |
|
waterproof grade: |
IP67 |
|
fire-proof grade: |
B1 |
|
hail-proof grade: |
level 4 (ANSI FM 4473) |
|
working temperature: |
-40°C to +85°C |
Dimensions
Dimensions
